Truma Combi Heaters
-
Truma Combi options: Truma’s ‘Combi’ range of air and water heaters are powerful, compact, and easy to install. They’ll keep you warm through colder nights and provide consistent hot water supply. The compact two-in-one unit provides warm air heating and simultaneously heats water in its integrated stainless steel tank. Better yet, if you don’t need the heater, you can heat up water independently.
Fuel source: Choose gas or diesel to run your Truma, with the additional benefit of integrated electric heating elements meaning you can power your Truma directly from mains electricity.
Power output: The gas-powered 2E, 4E and 6E units share the same water tank size, but their thermal power output varies (2kW, 4kW and 6kW respectively). Similarly, the diesel-powered D4E and D6E units provide 4kW or 6kW of power. The 2kW and 4kW units are perfect for small to medium-sized vehicles, and the 6kW for larger vans, motorhomes and boats etc.
Display panel options: Truma offer their original CP Panel or the new, sleeker looking iNet X panel, with a touch screen and the ability to link into the Truma app. The iNet X can link to other Truma appliances that are iNet compatible.
Truma Combi Diesel & Electric Boilers
Truma Combi air and water heater with sleek iNet X touch screen display pictured.
Truma Combi D6E has a power output of : 6kW (D6E)
The Truma Combi D4E kit comes with the following items. You will need to supply your own fuel tank connector which is dependant on your campervan make and model.
Truma Combi Boiler D6E
Combifrost control John Guest assembly
Truma iNetX control panel
6m control cable
Duct kit
Fuel pump bracket
Wall cowl inner part
Cowl outer part - Black
4m cable for room sensor
Fuel line 8m x 1.5mm
Combi Cover plate
Breather Tube
Room temperature sensor
Holding down screws
Installation & operation instructions
JG Water Connection elbows
Combi to diesel wiring harness
Diesel Pump with hose connectors
Diesel pump flexible holding bracket
Exhaust connection clips
Exhaust O ring
Exhaust mounting screws
Specification:
Powered by diesel and easily connected to your vehicle fuel tank
Can also run on 230V mains electricity
Optimum warm air distribution via four air outlets
Heats the vehicle and water very quickly (approx. 15 °C to approx. 60 °C in 20 minutes_
Air heater can be operated with an empty water tank
Integrated pressure sensor automatically controls the combustion air infeed
Comes with exhaust pipes and exterior cowl, water inlet/outlet fittings, drain valve and thermostat sensor
Lower fuel and power consumption
Water capacity: 10 litres
Dimensions (l x w x h) (mm): 510 x 450 x 300
Weight: 16.8kg (D4E) or 16.9kg (D6E) (when empty)
Choose our cost-saving bundle which includes the following:
10 metres warm air ducting
4 x Truma end outlets, to connect to the end points of your ducting
4 x back nuts for the end outlets, to secure to your walls/panels
8 pipe clips to secure the ducting run
Truma Combi Gas & Electric Boilers
The Truma 4E is a must have for your campervan! It's provides hot water and warms your campervan in a reliable, easy to install and easy to use product. The iNet X control panel is really sleek and if you have any other Truma iNet X devices they can be connected into this 'hub' and centrally controlled. If you require any other Truma products such as air conditioning - please get in contact and we can do you a deal!
Items included in package:
Truma LPG and 230V Combi Boiler unit - 4E
iNet X control panel
Black external cowl
Metal inner cowl
Black air combustion pipe
Metal exhaust pipe
Room temperature sensor
Room temperature sensor wire - The wire is not included from Truma as standard so most companies sell this separately!! (We try and make life easier for you, so we have included it in our kit!)
John Guest drain and 2 x 10mm to 12mm elbow fittings
2 x Metal pipe clamps for connecting combustion air ducting
2 x Metal pipe clamps for connecting exhaust pipe
Gas connection nut and olive
We have a ducting bundle that can be purchased - select in the drop down menu.
The standard ducting bundle includes:
4 x Truma outlets (either black or grey depending on the selection)
4 x Truma back nuts
12 x Truma ducting clips
4 x Truma ducting elbows
10m of Truma ducting
The XL ducting bundle contains the following - select in the drop down menu:
4 x Truma outlets (either black or grey depending on the selection)
4 x Truma back nuts
24 x Truma ducting clips
4 x Truma ducting elbows
20m of Truma ducting. This can either come as 2 x 10m or 1 x 20m and is dependant on stock availability as to which you will receive.
The Truma 6E is a must have for your campervan! The extra power the 6E offers is ideal for larger campervans and motorhomes. It's provides hot water and warms your campervan in a reliable, easy to install and easy to use product. The iNet X control panel is really sleek and if you have any other Truma iNet X devices they can be connected into this 'hub' and centrally controlled.
Items included in package:
Truma LPG and 230V Combi Boiler unit - 6E
iNet X control panel
Black external cowl
Metal inner cowl
Black air combustion pipe
Metal exhaust pipe
Room temperature sensor
Room temperature sensor wire - The wire is not included from Truma as standard so most companies sell this separately!! (We try and make life easier for you, so we have included it in our kit!)
John Guest drain and 2 x 10mm to 12mm elbow fittings
2 x Metal pipe clamps for connecting combustion air ducting
2 x Metal pipe clamps for connecting exhaust pipe
Gas connection nut and olive
We have a ducting bundle that can be purchased - select in the drop down menu.
The standard ducting bundle includes:
4 x Truma outlets (either black or grey depending on the selection)
12 x Truma ducting clips
10m of Truma ducting
The XL ducting bundle contains the following - select in the drop down menu:
4 x Truma outlets (either black or grey depending on the selection)
24 x Truma ducting clips
20m of Truma ducting. This can either come as 2 x 10m or 1 x 20m and is dependant on stock availability as to which you will receive.
Gas Kits With Truma/ GOK Regulator
Please note all gas items and appliances should be installed by a qualified and registered gas-safe professional.
If you are looking to install gas into your campervan or motorhome then this is the perfect starter kit for you.
GOK 8mm Regulator (0129471)
High quality bulkhead mounted gas regulator comes complete with integrated test point.
It operates at 30mbar and 1.5kg/hr, and can
Below are the bundle components listed out, there is also an option to add a propane cylinder gauge to each bundle. This is a really useful way of seeing how full the tank is with out physically having to unstrap the cylinder and seeing how full it is by its weight.
GOK Regulator & 2 Outlet Truma Manifold:
1 x GOK Regulator (0129471)
1 × 1 Outlet Truma manifold, 2 manifold nuts, 2 Truma Olives
1 x Pigtail (select either wrench or handwheel fixing in drop down menu)
1 x 8mm Elbow
1 x 8mm Straight connector
2 x Long drop vents
2 x Fawo gas bottle brackets
2 x Fawo gas bottle brackets spacers
2 x Fawo gas bottle straps
10 x High quality rubberised P-clips
2.5m of 8mm copper pipe
1 x Pipe cutter
Please note all gas items and appliances should be installed by a qualified and registered gas-safe professional.
If you are looking to install gas into your campervan or motorhome then this is the perfect starter kit for you.
GOK 8mm Regulator (0129471)
High quality bulkhead mounted gas regulator comes complete with integrated test point.
It operates at 30mbar and 1.5kg/hr, and can
Below are the bundle components listed out, there is also an option to add a propane cylinder gauge to each bundle. This is a really useful way of seeing how full the tank is with out physically having to unstrap the cylinder and seeing how full it is by its weight.
GOK Regulator & 2 Outlet Truma Manifold:
1 x GOK Regulator (0129471)
1 x 2 Outlet Truma manifold, 4 manifold nuts, 3 Truma Olives, 1 Truma blanking olive
1 x Pigtail (select either wrench or handwheel fixing in drop down menu)
1 x 8mm Elbow
1 x 8mm Straight connector
2 x Long drop vents
2 x Fawo gas bottle brackets
2 x Fawo gas bottle brackets spacers
2 x Fawo gas bottle straps
25 x High quality rubberised P-clips
10m of 8mm copper pipe
1 x Pipe cutter
Please note all gas items and appliances should be installed by a qualified and registered gas-safe professional.
If you are looking to install gas into your campervan or motorhome then this is the perfect starter kit for you.
GOK 8mm Regulator (0129471)
High quality bulkhead mounted gas regulator comes complete with integrated test point.
It operates at 30mbar and 1.5kg/hr, and can
Below are the bundle components listed out, there is also an option to add a propane cylinder gauge to each bundle. This is a really useful way of seeing how full the tank is with out physically having to unstrap the cylinder and seeing how full it is by its weight.
GOK Regulator & 3 Outlet Truma Manifold:
1 x GOK Regulator (0129471)
1 × 3 Outlet Truma manifold, 5 manifold nuts, 4 Truma Olives, 1 Truma blanking olive
1 x Pigtail (select either wrench or handwheel fixing in drop down menu)
1 x 8mm Elbow
2 x 8mm Straight connector
2 x Long drop vents
2 x Fawo gas bottle brackets
2 x Fawo gas bottle brackets spacers
2 x Fawo gas bottle straps
25 x High quality rubberised P-clips
10m of 8mm copper pipe
1 x Pipe cutter
Please note all gas items and appliances should be installed by a qualified and registered gas-safe professional.
If you are looking to install gas into your campervan or motorhome then this is the perfect starter kit for you.
GOK 8mm Regulator (0129471)
High quality bulkhead mounted gas regulator comes complete with integrated test point.
It operates at 30mbar and 1.5kg/hr, and can
Below are the bundle components listed out, there is also an option to add a propane cylinder gauge to each bundle. This is a really useful way of seeing how full the tank is with out physically having to unstrap the cylinder and seeing how full it is by its weight.
GOK Regulator & 4 Outlet Truma Manifold:
1 x GOK Regulator (0129471)
1 × 4 Outlet Truma manifold, 6 manifold nuts, 5 Truma Olives, 1 Truma blanking olive
1 x Pigtail (select either wrench or handwheel fixing in drop down menu)
2 x 8mm Elbow
2 x 8mm Straight connector
2 x Long drop vents
2 x Fawo gas bottle brackets
2 x Fawo gas bottle brackets spacers
2 x Fawo gas bottle straps
25 x High quality rubberised P-clips
10m of 8mm copper pipe
1 x Pipe cutter
Gas Appliances
The Truma Ultrastore Rapide GE Boiler is a compact and versatile 10-liter water heater designed for use in caravans, motorhomes, and other recreational vehicles.
This water heater can operate on both gas and electricity, providing flexibility in choosing your energy source.
It is designed to work with 10mm diameter semi rigid water pipes, ensuring compatibility with standard water pipe sizes commonly found in RVs.
This product includes a control panel with a 3-meter connecting cable, a white wall cowl for installation, and a safety/drain valve. These components are essential for the proper installation and operation of the water heater.
When using the 12V power supply, ignition consumes 0.17A, the heating phase consumes 0.08A, and during standby mode, it draws 0.04A of current.
When using a 230V power supply at 850W, the water heater consumes either 3.7A or 5.7A of current.
The gas consumption rate for this water heater is 120grams per hour.
The water heater without water is just 7.2kg, making it suitable for installation in RVs where weight considerations are important.
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
- Type of gas: Liquid gas (propane / butane)
- Operating pressure: 30 mbar
- Rated thermal output: 1500 W
- Gas consumption: 120 g/h
- Heating up time from approx. 15 °C to approx. 70 °C (Rapid GE - 10 litres): Gas operation: approx. 31 minutes, Electrical operation: approx. 29 minutes, Gas and electrical operation: approx. 16 minutes
- 12V Power consumption: Ignition: 0.17 A, Heating up: 0.08 A, Standby: 0.04 A
- 230V Power consumption: Heating up: (3.7 A) 850W / (5.7 A) 1300W
Stand-by consumption gas: approx. 70W

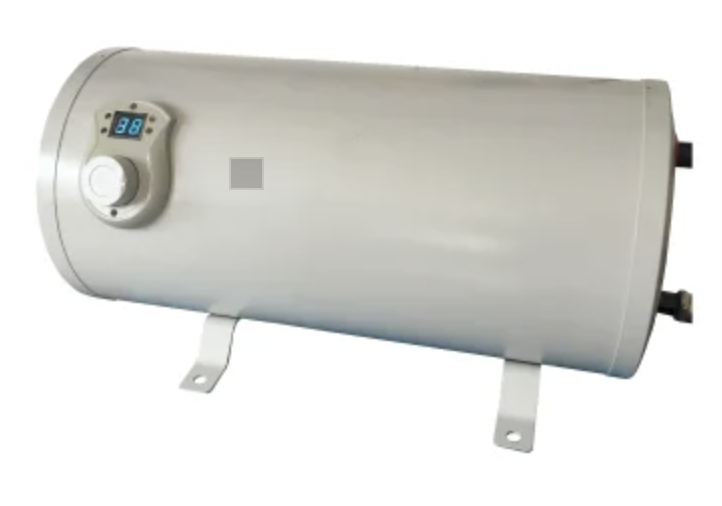

Propex Water Storage Heater 10L is an electric only water heater.
Rated Voltage: 230V
Rated Power: 800 W
Rated Frequency: 50HZ/ 60HZ
Rated Current: 4.0A
Rated Pressure: 0.8MPa (116psi)
Min Start-up Pressure: 0.05MPa (7psi)
Rated Water Temperature: 75C
Fitted Socket: 250V, 16A
Heating Efficiency: >90%
5 Year tank guarantee
Size: 10 litre 600mm wide x 270mm deep x 260mm high
Integrated mounting feet allows secure installation to the floor. Supplied water hose connectors give options of 12mm push fit female fitting or adaptor to 12mm barbed hose connector.
Truma Ducting
The 10m Ducting Bundle contains the following:
10m of 65mm Ducting
4 x Black Truma outlets
4 x Grey Truma back nuts
8 x Pipe clips
Warm blown air ducting, compatible with Truma Combi range (gas or diesel).
Compatible with Truma ducting outlets and back nuts (sold separately).
Outlet for Truma blown air ducting in black, supplied with a grey screw-on back nut to secure the outlet to a panel, such as plywood.
Compatible with 65mm ducting.
Outlet for Truma blown air ducting in grey, supplied with a grey screw-on back nut to secure the outlet to a panel, such as plywood.
Compatible with 65mm ducting.
Clip for 65mm ducting, with screw hole and easy clip design. Allows you to neatly and securely run ducting throughout your vehicle.
Y-piece for 65mm ducting, allowing you to splice off your heating supply to different areas using the same outlet on the Truma heater, or combining two ducts into one. The ducting fits within each branch of the Y-piece and you may wish to use duct tape to secure the ducting.
This elbow attaches straight into one of the four outlets in the Truma Combi Boilers. It could be used were space is limited and where a the flexible hose may buckle.
Electric Water Boilers
Propex Water Storage Heater 10L is an electric only water heater.
Rated Voltage: 230V
Rated Power: 800 W
Rated Frequency: 50HZ/ 60HZ
Rated Current: 4.0A
Rated Pressure: 0.8MPa (116psi)
Min Start-up Pressure: 0.05MPa (7psi)
Rated Water Temperature: 75C
Fitted Socket: 250V, 16A
Heating Efficiency: >90%
5 Year tank guarantee
Size: 10 litre 600mm wide x 270mm deep x 260mm high
Integrated mounting feet allows secure installation to the floor. Supplied water hose connectors give options of 12mm push fit female fitting or adaptor to 12mm barbed hose connector.
The Truma Ultrastore Rapide GE Boiler is a compact and versatile 10-liter water heater designed for use in caravans, motorhomes, and other recreational vehicles.
This water heater can operate on both gas and electricity, providing flexibility in choosing your energy source.
It is designed to work with 10mm diameter semi rigid water pipes, ensuring compatibility with standard water pipe sizes commonly found in RVs.
This product includes a control panel with a 3-meter connecting cable, a white wall cowl for installation, and a safety/drain valve. These components are essential for the proper installation and operation of the water heater.
When using the 12V power supply, ignition consumes 0.17A, the heating phase consumes 0.08A, and during standby mode, it draws 0.04A of current.
When using a 230V power supply at 850W, the water heater consumes either 3.7A or 5.7A of current.
The gas consumption rate for this water heater is 120grams per hour.
The water heater without water is just 7.2kg, making it suitable for installation in RVs where weight considerations are important.
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
- Type of gas: Liquid gas (propane / butane)
- Operating pressure: 30 mbar
- Rated thermal output: 1500 W
- Gas consumption: 120 g/h
- Heating up time from approx. 15 °C to approx. 70 °C (Rapid GE - 10 litres): Gas operation: approx. 31 minutes, Electrical operation: approx. 29 minutes, Gas and electrical operation: approx. 16 minutes
- 12V Power consumption: Ignition: 0.17 A, Heating up: 0.08 A, Standby: 0.04 A
- 230V Power consumption: Heating up: (3.7 A) 850W / (5.7 A) 1300W
Stand-by consumption gas: approx. 70W
The Truma Therme TT-2 water heater is specifically designed for motorhomes with its lightweight and compact design. Connects to your existing warm air system to heat up water in its 5 litre tank. This is a great option to get hot water supply if your camper van has a diesel, petrol or gas air heater. The Therme TT2 has a 300W electric 230V element so is suitable for use on AC mains hookup or DC leisure batteries via an inverter.
Specification:
Easy to use thermostat
Heats water to 65°c
Water capacity: 5 litres
Power consumption: 300W, 1.3 amps
Requires mains (230V) power supply
Dimensions (h x w x d) (mm): 220 x 230 x 370
Weight: 2kg (without water)
Ducting is not supplied
See data sheet on the Truma website for further details.
Truma’s 14L electric water heater quickly heats up water to 70°c – and keeps it hot for a long time. It is ideal for motorhomes, vans, boats, garden pods (and more!) with its low power consumption, quality insulation and compact design. The stainless steel container and all other materials that come into contact with water are safe for use with drinking water. The 230V element is suitable for use on AC mains hookup or DC leisure batteries via an inverter.
Specification:
Built-in control panel
Water capacity: 14 litres
Heating time: approx. 70 minutes 15°c to 70°c
Power consumption: 850W, 3.7 amps
Requires mains (230V) power supply
Dimensions (h x w) (mm): 295 x 405, diameter 450, see diagram
Weight: approx. 3kg (without water)
Water fittings not included
See data sheet on the Truma website for further details.
Water fittings not included
Truma Combi air and water heater with sleek iNet X touch screen display pictured.
Truma Combi D4E has a power output of : 4kW (D4E)
The Truma Combi D4E kit comes with the following items. You will need to supply your own fuel tank connector which is dependant on your campervan make and model.
Truma Combi Boiler D4E
Combifrost control John Guest assembly
Truma iNetX control panel
6m control cable
Duct kit
Fuel pump bracket
Wall cowl inner part
Cowl outer part - Black
4m cable for room sensor
Fuel line 8m x 1.5mm
Combi Cover plate
Breather Tube
Room temperature sensor
Holding down screws
Installation & operation instructions
JG Water Connection elbows
Combi to diesel wiring harness
Diesel Pump with hose connectors
Diesel pump flexible holding bracket
Exhaust connection clips
Exhaust O ring
Exhaust mounting screws
Specification:
Powered by diesel and easily connected to your vehicle fuel tank
Can also run on 230V mains electricity
Optimum warm air distribution via four air outlets
Heats the vehicle and water very quickly (approx. 15 °C to approx. 60 °C in 20 minutes_
Air heater can be operated with an empty water tank
Integrated pressure sensor automatically controls the combustion air infeed
Comes with exhaust pipes and exterior cowl, water inlet/outlet fittings, drain valve and thermostat sensor
Lower fuel and power consumption
Water capacity: 10 litres
Dimensions (l x w x h) (mm): 510 x 450 x 300
Weight: 16.8kg (D4E)
Choose our cost-saving bundle which includes the following:
10 metres warm air ducting
4 x Truma end outlets, to connect to the end points of your ducting
4 x Truma back nuts for the end outlets, to secure to your walls/panels
4 x Truma elbows
8 x Truma pipe clips to secure the ducting run
