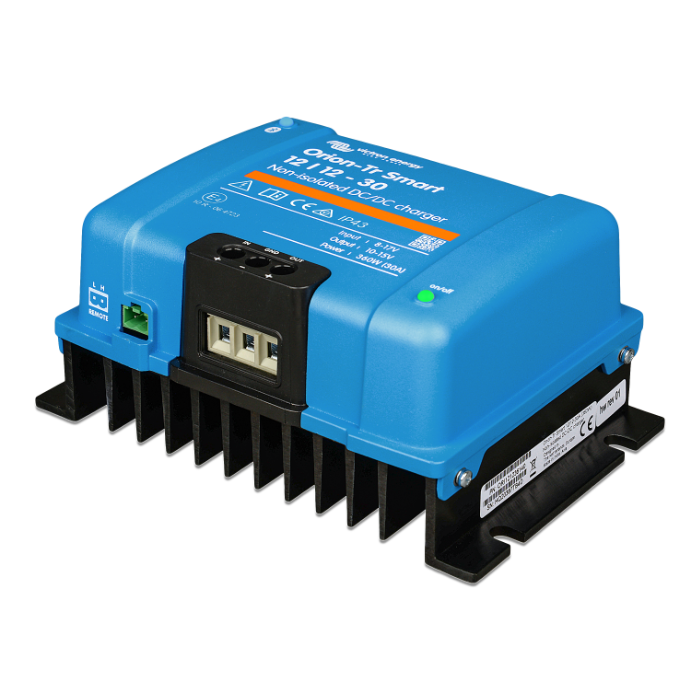

Victron Orion-Tr Smart DC-DC Charger Non-Isolated - 12V / 12V - 30A
DC to DC adaptive 3-stage charger with built-in Bluetooth for monitoring via a smart phone. Allows charging of 12V leisure batteries via the vehicle alternator (and 12V starter battery) when driving. Features on/off switch, programmable charging mode, smart alternator support with engine running detection mechanism, short-circuit and high-temperature protections.
Specification:
Starter battery (V): 12
Leisure battery (V) : 12
Input voltage range (V): 10-17
Continuous output current (A): 30
Continuous output power at 25°C (W): 430
Dimensions (h x w x d): 235 x 108 x 65 (mm)
Weight (kg): 1.8
See data sheet for further details.
